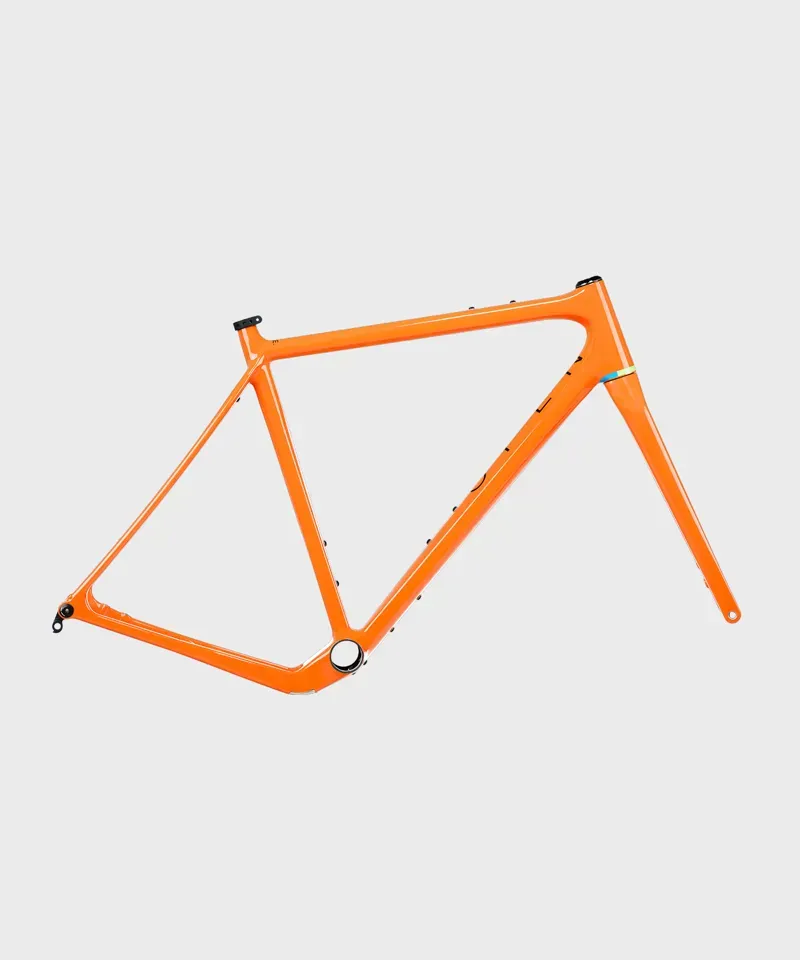

Open Cycle Wide Frame U-Turn Fork - Orange

Brand:Open Cycle

Code:VAR-OP-368ORG

{{widget type="magento\cms\block\widget\block" template="widget/static_block/default.Phtml" block_id="183" type_name="cms static block"}}

monster tyres nimble ride.

The wi.De. (winding detours) targets bigger tyres than the u.P. Without compromising speed.



Thanks to its efficient rider position the wi.De. Is deceptively fast on-road despite the big tyres. This always surprises first-time wi.De. Riders. So great fun on-road and no limits off-road.



Equally important is the handling. The wi.De. Retains its agility with anything from massive mountain tires to road tyres. Trigonometry helps us a bit here as the trail automatically grows together with the tyre size just like you want for tougher terrain.

{{widget type="magento\cms\block\widget\block" template="widget/static_block/default.Phtml" block_id="192" type_name="cms static block"}}

frame specification












































































































weight

1040g

fork weight 390g
sizes xs / s / m / l / xl
rtp (ready-to-paint) a clearcoat is not needed for uv protection but recommended to protect against scratches and wear. Some customers leave the frame bare.
Bb standard bb386evo pressfit 86.5x46mm bb shell
recommended groupsets the wi.De. Is dedicated 1x (or 2x with classified hub). For serious gravel and off-road (on any brand of bike) we recommend a rear derailleur with a clutch or cage damper: any Shimano grx any SRAM axs any older SRAM 1x mechanical campagnolo ekar)
shimano crank fit all road cranks
sram crank fit all dub road force 1 bb30
front derailleur mount none 1x drivetrain standard 2x only with classified hub
recommended ring shape flat (for example wolftooth)
maximum 1x ring size general guidance: 46t (flat ring not available in all sizes with all bcds so check with your crank supplier) 42t (sram offset ring). Note: clearance depends on chainline & chainring. 2mm space is required so please verify.
Minimum 1x ring size in standard set-up: 38t (flat & offset rings). Smaller rings can work depending on cassette/rear derailleur/chain length setup
front thru-axle 100x12mm superlight carbon-ti x-12
front disc rotor size 160mm only
front brake caliper mount smartmount 160 system attaches flatmount caliper without adaptor for 160mm rotors
rear thru-axle 142x12mm superlight carbon-ti x-12
rear disc rotor size 160mm only
rear brake caliper mount smartmount 160 system attaches flatmount caliper without adaptor for 160mm rotors
multistop internal system mechanical 1x Di2 etap
headset integrated is42/28.6 | is52/40 with 45x45 degree lower bearing).
For example cane creek baa1131 (upper) + cane creek baa1161 (lower) chris king dropset 2 or token omega a83
seatpost 27.2mm diameter standard set-up zero-offset
fenders compatible with open de-fender
or clip-on style fenders (we prefer the sks speedrocker)
cage mounts seattube downtube under-downtube under-bb
tt bag mount system 100mm front-post-to-headset-edge
max. Weight (total rider+luggage) 120kg / 264 lbs
en/iso/internal test standard
included with frameset headset

seattube top clamp

rail clamp

thru-axles

2 rd hangers

2 multistops (1x Di2 etap)

cable exit stop

noise-reduction foam sleeves

bottle cage bolts

manual



please note: specifications are subject to change without notice.

Geometry



all measurements are shown in millimetres.

































































































































Xs s m l xl
suggested rider height (in) <165 160-171 169-180 178-191 188-205
stack 520 545 570 595 620
reach 346 358 370 382 394
headtube length 99 125 150 170 196
fork offset 50 50 50 50 50
standover 707 739 777 794 817
headtube angle 68.0° 69.0° 71.0° 71.5° 71.5°
seattube length 464 495 530 550 564
seattube angle 74.5ãâ 74.0ãâ 73.5ãâ 73.5ãâ 73.5ãâ
toptube length (horizontal) 510 530 550 570 590
bb drop 80 77 75 75 75
front center 583 596 599 613 634
rear center 420 420 420 420 420
wheelbase 990 1004 1009 1022 1042
